SWTDO Merged Material Library merges 18 SolidWorks material libraries into one .sldmat file: deduplicated, with a unified category structure, ready for material assignment, structural material selection and FEA pre-processing in SolidWorks.
Data scale
| Source libraries | 18 .sldmat files |
| Material records before merging | 2,963 |
| Materials after merging | 1,890 |
| Unique materials (merged by name) | 1,392 |
| Categories | 81 (same structure as the library file) |
| Property types | 14 |
| File size | about 4.1 MB |
Properties included for every material
- Elastic Modulus (EX), Shear Modulus (GXY)
- Poisson’s Ratio (NUXY)
- Density (DENS)
- Thermal Conductivity (KX), Specific Heat (C), Thermal Expansion Coefficient (ALPX), Volumetric Expansion Coefficient (BETA)
- Tensile Strength (SIGXT), Yield Strength (SIGYLD), Compressive Strength (SIGXC)
- Specific Heat Ratio (GAMMA), Hardening Factor (RK), Dynamic Viscosity (VISC)
Values are given in common engineering units: modulus and strength in MPa, density in g/cm³, thermal conductivity in W/(m·K), specific heat in J/(kg·K).

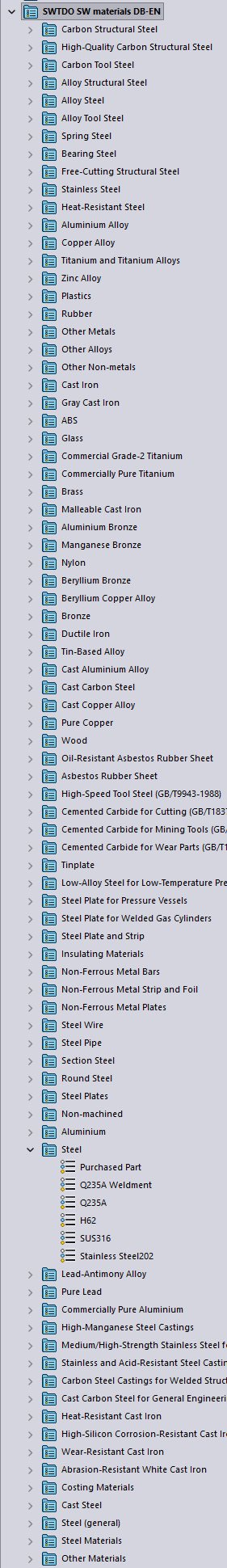

Categories (81)
- Carbon Structural Steel
- High-Quality Carbon Structural Steel
- Carbon Tool Steel
- Alloy Structural Steel
- Alloy Steel
- Alloy Tool Steel
- Spring Steel
- Bearing Steel
- Free-Cutting Structural Steel
- Stainless Steel
- Heat-Resistant Steel
- Aluminium Alloy
- Copper Alloy
- Titanium and Titanium Alloys
- Zinc Alloy
- Plastics
- Rubber
- Other Metals
- Other Alloys
- Other Non-metals
- Cast Iron
- Gray Cast Iron
- ABS
- Glass
- Commercial Grade-2 Titanium
- Commercially Pure Titanium
- Brass
- Malleable Cast Iron
- Aluminium Bronze
- Manganese Bronze
- Nylon
- Beryllium Bronze
- Beryllium Copper Alloy
- Bronze
- Ductile Iron
- Tin-Based Alloy
- Cast Aluminium Alloy
- Cast Carbon Steel
- Cast Copper Alloy
- Pure Copper
- Wood
- Oil-Resistant Asbestos Rubber Sheet
- Asbestos Rubber Sheet
- High-Speed Tool Steel (GB/T9943-1988)
- Cemented Carbide for Cutting (GB/T18376.1-2001)
- Cemented Carbide for Mining Tools (GB/T18376.2-2001)
- Cemented Carbide for Wear Parts (GB/T18376.3-2001)
- Tinplate
- Low-Alloy Steel for Low-Temperature Pressure Vessels
- Steel Plate for Pressure Vessels
- Steel Plate for Welded Gas Cylinders
- Steel Plate and Strip
- Insulating Materials
- Non-Ferrous Metal Bars
- Non-Ferrous Metal Strip and Foil
- Non-Ferrous Metal Plates
- Steel Wire
- Steel Pipe
- Section Steel
- Round Steel
- Steel Plates
- Non-machined
- Aluminium
- Steel
- Lead-Antimony Alloy
- Pure Lead
- Commercially Pure Aluminium
- High-Manganese Steel Castings
- Medium/High-Strength Stainless Steel for Engineering Structures
- Stainless and Acid-Resistant Steel Castings
- Carbon Steel Castings for Welded Structures
- Cast Carbon Steel for General Engineering
- Heat-Resistant Cast Iron
- High-Silicon Corrosion-Resistant Cast Iron
- Wear-Resistant Cast Iron
- Abrasion-Resistant White Cast Iron
- Costing Materials
- Cast Steel
- Steel (general)
- Steel Materials
- Other Materials
How the merge works
- Same-named categories are merged across libraries (for example all stainless steel records end up in one category)
- Specific categories win, catch-all packages only fill the gaps
- Same name with different data: every version is kept, nothing is dropped as a “looks similar” duplicate
- Materials with different Chinese and English names keep both names
Typical use
- Material selection and assignment in SolidWorks structural design
- Material data for SolidWorks Simulation studies
- Consistent material names and values across modelling and drawing batches
- Base data for building your own company material library
Delivery and usage

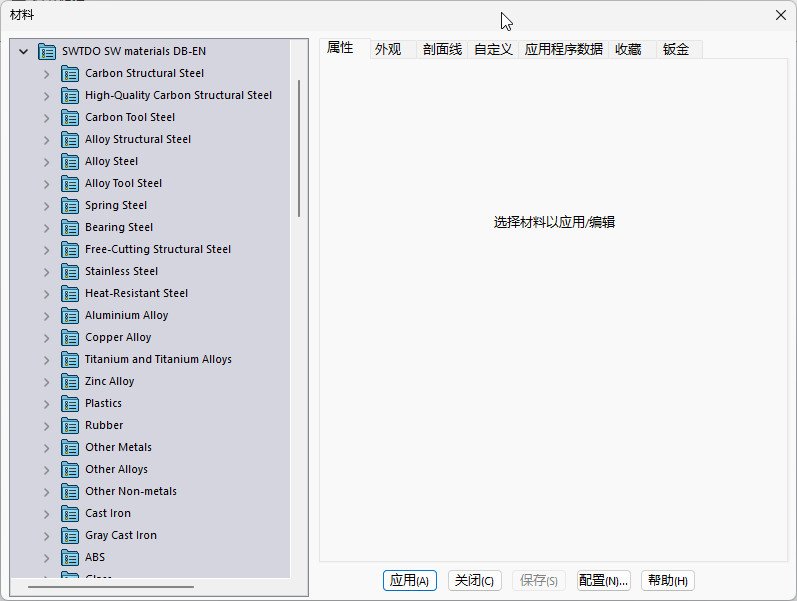

Delivered file: 合并库.sldmat (UTF-16, SolidWorks material library format). In SolidWorks use Material → Edit Material → browse to the file to load it.
